蝦蜜？！電腦啊吔選胚胎？每個都仁仁(台語唸)每個都能著床？：胚胎發展分裂的日記本－電腦自動時時間攝影TIME LAPSE

2014.07.03

  蝦蜜？！電腦啊吔選胚胎？每個都仁仁(台語唸)每個都能著床？：胚胎發展分裂的日記本－電腦自動時時間攝影TIME LAPSE

胚胎發展分裂的日記本－電腦自動時時間攝影

來自美國費城，有份研究針對胚胎用時時間攝影去選胚胎，可以找到真正有發育潛力的胚胎，它的作法是從卵子受精、第二天、第三天、第四天、第五天、甚至第六天，拍出兩千張左右的照片，當要植入胚胎前再回顧，這胚胎前六天發育的情況，簡直是胚胎回憶錄！我們現在看胚胎都是最後一天以外觀和分裂速度來定終生、定生死，

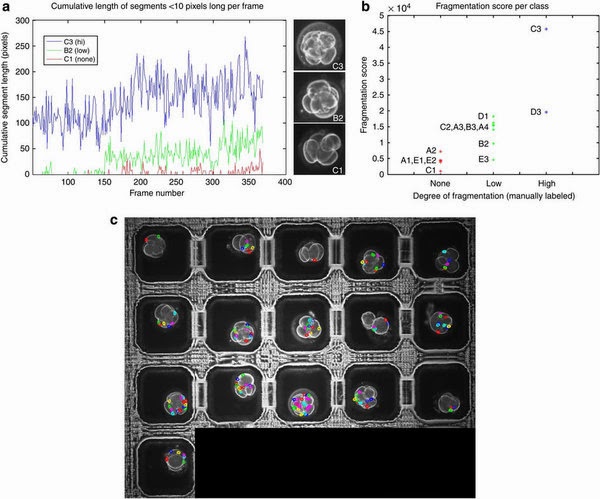

但事實上胚胎的發育有時候前面好，不一定後面好，假如從頭到尾胚胎是好的，從時時間胚胎照片攝影系統，我們可以了解到胚胎在分裂的時候常會有一些小碎片，但這些小碎片它有時候會自己吞掉，
所以時時間比較容易反應出胚胎的本質，潛力
但目前以基因晶片發展的迅速，可以在胚胎第五天切片，知道胚胎的本質，若加上四個小時給報告，這準確性會超過時時間攝影，
目前台灣衛生署遲遲沒有通過這個儀器進入台灣，就我了解：目前台灣沒有第二代實時間攝影系統。電腦自動時時間攝影TIME LAPSE
Time  Lapse Embryo Photography





IVF 'may be boosted by time-lapse embryo imaging'



Computer-Automated, Time-Lapse Embryo Photography May Increase Success of In-Vitro FertilizationNew Technology May Allow Doctors to Select Embryos with Greater Chance of Developing Into a Viable Pregnancy
Released: 7/2/2014 1:00 PM EDT
more news from this source
Contact Information
Available for logged-in reporters only


Newswise — PHILADELPHIA - Using computer-automated, time‐lapse photography of embryos in the laboratory during in-vitro fertilization may improve embryo selection, potentially increasing the chances of pregnancy among women undergoing the procedure, according to new research from the Perelman School of Medicine at the University of Pennsylvania and five other fertility centers. Results of the study were presented this week at the 30th annual European Society of Human Reproduction and Embryology (ESHRE) meeting in Munich, Germany.
The researchers at Penn and their collaborators used the Early Embryo Viability Assessment imaging device (or Eeva, developed and manufactured by Auxogyn, Inc.), which records images of developing embryos during the first three days of laboratory culture, to evaluate embryos transferred into the uterine cavity of 177 patients. The testing process involved fitting the devices into a standard incubator and using dark field imaging to capture high resolution, single-plane pictures of embryos housed in a petri dish, at five-minute intervals. The images were then fed into a software program that uses several measures to assess the embryo’s developmental potential – rating them high, medium, or low for their capacity to reach the blastocyst stage by the fifth or sixth day of culture. Embryos normally implant at the blastocyst stage – when they have divided into about 100-200 cells – and it is and it is known that blastocysts have a much greater chance of implanting successfully and resulting in an ongoing, viable pregnancy.
Information on the embryo quality rating was not available to clinicians during the IVF procedures that were part of the study, but when researchers unblinded the study results, they found that patients with at least one “high” rated embryo transferred had a 54 percent viable pregnancy rate compared to a 34 percent rate for those following transfer of only a “low” rated embryo.
“Our findings provide promising news for couples using or considering in-vitro fertilization because it shows that this technology offers the prospect of selecting embryos that have a greater likelihood of resulting in a pregnancy,” said lead author Matthew VerMilyea, PhD, who was serving as director of Assisted Reproductive Technologies and Andrology Laboratories at Penn at the time of the study and is currently a consultant to the division of Reproductive Endocrinology at Penn Medicine. “What’s particularly important is that our participants are from multiple clinics, each with distinctive protocols and patient populations, indicating that this technology may be generalizable and could have a significant impact in widely different laboratory settings.”
After an egg has been fertilized by a sperm, normal embryos follow clear-cut timeframes for development, such as the time it takes for a two-cell embryo to turn into a three-cell embryo, and the time it takes for a three-cell embryo to turn into a four-cell embryo. Based on these patterns, computer-automated programs have the potential to predict by day two of embryo development which embryo(s) are more likely to become viable blastocysts and, as suggested by the current Penn study, result in a viable pregnancy. By using non-invasive cell tracking and prediction software, the development of each embryo is automatically analyzed against the well-validated cell division time periods. If the timing and duration of cellular divisions fall within the defined optimal time periods, an embryo is given a high probability rating for becoming a blastocyst. If division timing falls outside of the optimal time range, an embryo is given a low probability rating. The current study extends these findings by showing that embryos receiving a high rating for becoming a blastocyst, also have a higher probability to implant and result in a viable pregnancy.
At present, fertility experts examine embryos under a microscope, looking at potential indicators of health of the embryo such as the number and symmetry of cells, and degrees of cell fragmentation. Based on these assessments and following recommendations developed through observational and correlative studies, clinicians and their embryology colleagues then choose which embryo(s) to transfer to the womb. The time-lapse system used in the new study uses objective visual evidence and automated predictive algorithms to enhance this conventional approach.
“Improving our ability to predict which embryos are most likely to result in pregnancy has been an elusive but sorely needed advance in the field of assisted reproduction” saidChristos Coutifaris, MD, PhD, chief of Reproductive Endocrinology at the Perelman School of Medicine at the University of Pennsylvania. “However, there is the potential for one more major breakthrough for this technology: By developing better, non-invasive, objective predictors of embryo quality, such as it appears to be the case with the Eeva system, we will be able to transfer fewer embryos into the womb, not only leading to higher viable pregnancy rates, but also minimizing the chances for the establishment of high risk multiple pregnancies such as twins and triplets. In the end, this may prove to be the most important contribution from the development of methods for the non-invasive evaluation of embryo quality.”
In addition to VerMilyea and Coutifaris, other Penn authors are Monica Mainigi, MD and Joshua T. Anthony. Other fertility centers participating in the study were Pacific Fertility Center, Reproductive Science Center of the Bay Area, Palo Alto Medical Foundation Fertility, HRC Fertility and Stanford Fertility & Reproductive Medicine Center.
Editor’s note: Dr. VerMilyea has served as a consultant for Auxogyn, Inc. which provided the technology for the study.
###
